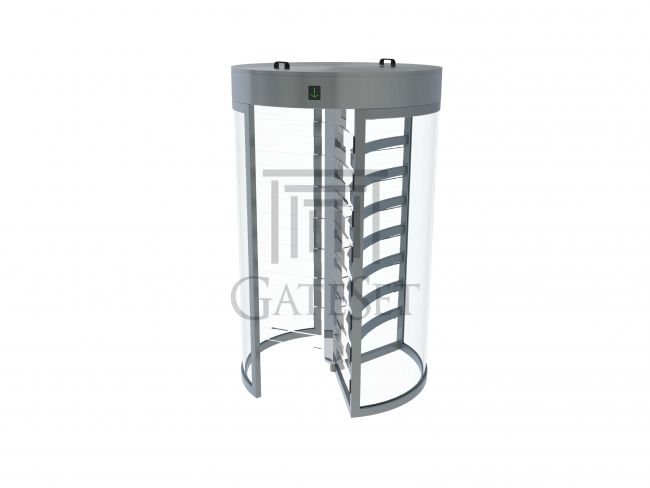

GF-6300 Series

PEDESTRIAN ACCESS CONTROL » Full Height Turnstiles

Overview

Full Height Turnstiles / GF-6300 Series GateSet Corporate Line GF-6300 Series Full Height Turnstiles are robust and aesthetic products especially designed for indoor usage, provide pedestrian access control in areas requiring high level of security while preserving aesthetic look. Transparent obstacles, enhances the elegance of GF-6300 Series. Its heavy duty mechanics, ensures smooth operation during controlling hundreds of pedestrians at one session successively. With ability to handle crowded labors of a Corporate Building, GF-6300 Series Full Height Turnstiles ensures robust solutions for pedestrian access control.

MATERIAL - MAIN BODY

3mm 304 Grade Stainless Steel

MATERIAL - SIDE SHIELDS

Polycarbonate Plate

MATERIAL - ROTOR

304 Grade Stainless Steel

MATERIAL - ROTATING ARMS

15 mm Plexiglass Plate

TREATMENT

All parts are coated against corrosion

DIMENSIONS (mm)

1380 x 1380 x 2200 (WxLxH) *

PASSAGE WIDTH (mm)

690 (per passage)

OPERATING VOLTAGE

220V / 50Hz

NOMINAL / MAX. CURRENT

250 mA / 850 mA

POWER CONSUMPTION

30 W

OPERATING TEMPERATURE

-20 0C / + 70 0C

ACCESS CONTROL

PLC based control for granting access Easy integration with all kind of access control equipment

POSITION DETECTION

Position detection with two separate micro-switches at mechanics

WARNING INDICATORS

Two separate warning indicators at front and rear sides of the gate Green arrow indicates “Passage Open”, Red cross indicates “Passage Closed” Three Color Passage Indication Bar Green for passage free, Red for passage block, Blue for standby 6 different operational modes available, programmed by means of

OPERATION MODE

6 different operational modes available, programmed by means of software

DIRECTIONAL MODE

Unidirectional and Bidirectional operation features as “Only Entrance”, “Only Exit”, “Entrance and Exit”

ROTATION CONTROL

Self centered and smooth operation by means of spring and hydraulic damper

CAPACITY

Handling more than 30 passengers per minute

OPERATION SAFETY

Electrical and mechanical safety for all components, To avoid injuries, all corners and sides are rounded

MANUAL OVERRIDE

Entry and Exit Manual Override option with locked switch cabinet (optional)

ELECTRICAL FAILURES

Main mechanism released and unlocked automatically. Arms rotates free.

CERTIFICATION

ISO 9001:2015

WARRANTY

2 Years
