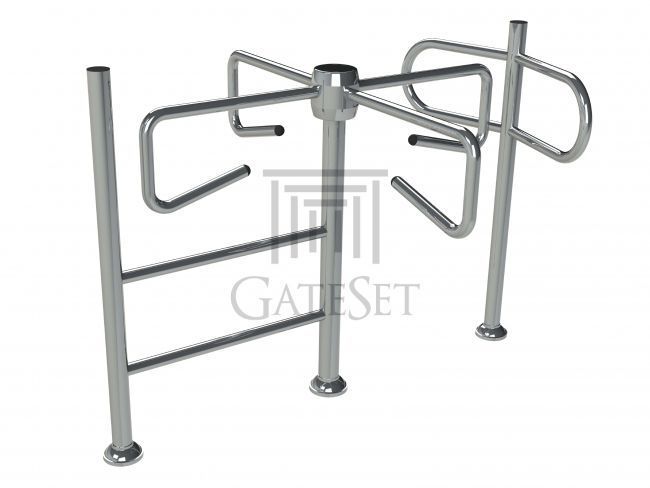

GP-1000 Series (Manual)

PEDESTRIAN ACCESS CONTROL » Swing Gate Turnstiles

Overview

Swing Gate Turnstiles / GP-1000 Series (Manual) GateSet Eco Line GP-1000 Series Manual Paddle Swing Gate Turnstiles are an economical alternative to regulate pedestrian traffic. It gives access in one direction, while it closes access at opposite direction firmly with its solid structure. GP-1000 Series Paddle Gates are applicable in cafeterias, shopping malls, supermarkets, fitness/wellness centers with its silent operation and user friendly design.

MATERIAL - MAIN BODY

304 grade stainless steel, polished finishing

MATERIAL - SWING ARM

Steel profile frame with 32 mm diameter

OTHER PARTS

304 grade stainless steel

DIMENSIONS (mm)

1385 x 1160 x 1000 (WxLxH)

PADDLE ARM WIDTH (mm)

550

OPERATING VOLTAGE

None

OPERATING TEMPERATURE

-20 0C / + 70 0C

ACCESS CONTROL

Free passage in desired direction. Passage is blocked in opposite direction

OPERATIONAL MODE

Manual operation, arm is pushed by user. Silent and smooth.

OPERATION SAFETY

Electrical and mechanical safety for all component. To avoid injuries, all corners and sides are rounded

CERTIFICATION

ISO 9001:2008

WARRANTY

2 Years
