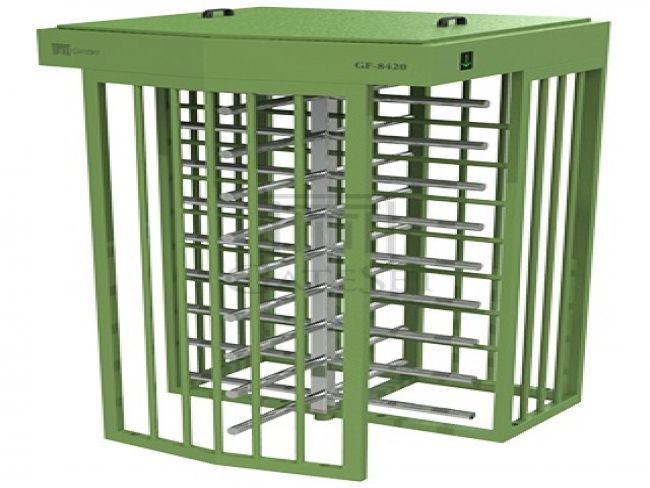

GF-8420 - Powder Coated Body - Arms_Rotar 304 SS

PEDESTRIAN ACCESS CONTROL » Full Height Turnstiles

Overview

GateSet Secure Line GF-8420 Series Full Height Turnstiles are robust products functioning indoor and outdoor, provide pedestrian access control in areas requiring high level of security. Cage type structure, manufactured from heavy gauge steel, enhances the strength of the GF-8420 series to withstand against crowd pressure. Its heavy duty mechanics, ensures smooth operation during controlling thousands of pedestrians at one session successively. With proven ability to handle massive crowds in places like subways or stadiums, Full Height Turnstiles ensures robust solutions for crowd control.

MATERIAL - MAIN BODY

GF-8400 / GF-8420 / GF-8430: Electrostatic Powder Coating on Steel GF-8440: 304 Stainless Steel - Satin Finishing

MATERIAL - ROTATING ARMS

GF-8400: Electrostatic Powder Coating on Steel GF-8420 / GF-8440: 304 Stainless Steel GF-8430: 316 Stainless Steel

TREATMENT - OTHER PARTS

All other parts are coated against corrosion

DIMENSIONS (mm)

1350 x 1300 x 2200 (WxLxH)

PASSAGE WIDTH (mm)

612

OPERATING VOLTAGE

220V / 50Hz

NOMINAL / MAX. CURRENT

250 mA / 850 mA

POWER CONSUMPTION

30 W

OPERATING TEMPERATURE

-20°C / + 70°C

ACCESS CONTROL

Microprocessor based control for granting access. Easy integration with all kind of access control equipment

POSITION DETECTION

Position detection with two separate micro-switches at mechanics Green arrow indicates “Passage Open”, Red cross indicates “Passage Closed”

PASSAGE ACKNOWLEDGMENT

Provided by 4 pieces of optical passage sensors controlled with PLC (optional)

WARNING INDICATORS

Two separate warning indicators at front and rear sides of the gate. Green arrow indicates “Passage Open”, Red cross indicates “Passage Closed”

OPERATION MODE

6 different operational modes available, programmed by means of software

DIRECTIONAL MODE

Unidirectional and Bidirectional operation features as “Only Entrance”, “Only Exit”, “Entrance and Exit”

ROTATION CONTROL

Self-centered and smooth operation by means of spring and hydraulic damper

CAPACITY

Handling more than 30 passengers per minute To avoid injuries, all corners and sides are rounded

DESIGN

While Cage type design enhances security, its modularity ensures easy part replacement

OPERATION SAFETY

Electrical and mechanical safety for all components, To avoid injuries, all corners and sides are rounded

MANUAL OVERRIDE

Entry and Exit Manual Override option with locked switch cabinet (optional)

ELECTRICAL FAILURES

Main mechanism released and unlocked automatically. Arms rotates free.

CERTIFICATION

ISO 9001:2015, CE

WARRANTY

2 Years
