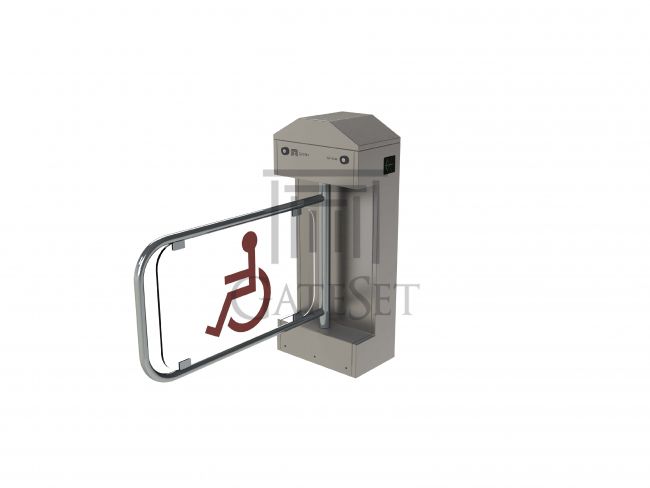

GV-3140- Motorized Angled Top Design
Overview
With its motorized function in both directions, GateSet Classic Line GV-3140 Series Motorized Swing Gates provides an alternative way to regulate pedestrian traffic. Swing Gates are compatible with international wheel chair standards, thanks to passage width provided up to 90 cm. Stainless Steel Profile obstacle arm is filled with 15 mm thick Plexiglas which provides safety against breaking, while it enhances robustness. GV-3140 Series Swing Gates are designed compatible with GT-3100 Series Swing Gate Turnstiles in order to provide a full access control solution in a coherent way. Aesthetic and user friendly solutions are realized by GV-3100 Series Motorized Swing Gate Turnstiles
Technical Specifications
MATERIAL - MAIN BODY
:
1.5 mm 304 grade stainless steel
MATERIAL - SWING ARM
:
Steel profile frame with 32 mm diameter, Plexiglas Infill
TREATMENT - OTHER PARTS
:
All other parts are coated against corrosion
DIMENSIONS (mm)
:
GV-3100: 450 x 1165 x 970 (WxLxH) GV-3140: 450 x 1165 x 1050 (WxLxH)
WING ARM LENGTH (mm)
:
885
OPERATING VOLTAGE
:
220 V AC / 24V DC - 50-60 Hz
NOMINAL / MAX. CURRENT
:
100 mA / 500 mA
POWER CONSUMPTION
:
30 W
OPERATING TEMPERATURE
:
-20 0C / + 70 0C
ACCESS CONTROL
:
Microprocessor based control for granting access Easy integration with all kind of access control equipment
POSITION DETECTION
:
Position detection with two separate micro-switches at mechanics
DIRECTIONAL MODE
:
Bi-directional motorized operation
ROTATION CONTROL
:
Motion start and stop are controlled by PWM microprocessor
CAPACITY
:
Handling more than 30 passengers per minute
DESIGN
:
Modular design providing ease of installation and part replacement GV-3100 Flat Top is coherent with GT-3100 Flat Top, similarly GV-3140 Angled Top is coherent with GT-3140 Angled Top
INSTALLATION
:
Stainless steel modular installation platform/base
OPERATION SAFETY
:
Electrical and mechanical safety for all component. To avoid injuries, all corners and sides are rounded
ELECTRICAL FAILURES
:
Main mechanism released and unlocked automatically. Swing arm moves freely
ACCESSORIES
:
Button Control (standard) Remote Control Receiver and Transmitter (optional)
CERTIFICATION
:
ISO 9001:2008
WARRANTY
:
2 Years
