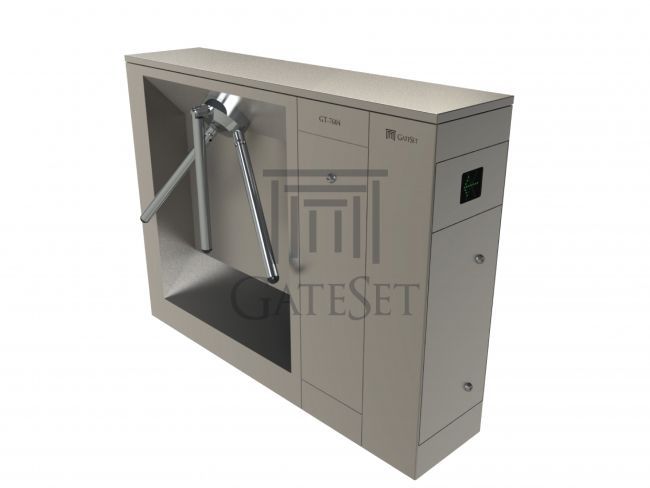

GT-7604- Flat Top Design with Drop Arm Feature

PEDESTRIAN ACCESS CONTROL » Tripod Turnstiles

Overview

GateSet Busy Line GT-7604 Series Waist Height Tripod Turnstiles are robust products functioning indoor or outdoor, provide pedestrian access control in areas requiring moderate level of security. Long case design, manufactured from 1,5 mm 304 grade stainless steel, enhances the robustness of GT-7604 series, provides massive strenght to handle 10.000+ users per day, while supports integration with various systems thanks to its customized lockers. With proven ability to handle massive crowds in places like subways or stadiums, GateSet Tripod Turnstiles ensures robust solutions for crowd control

MATERIAL - MAIN BODY

1.5 mm 304 grade stainless steel, satin finishing

MATERIAL - ROTATING ARMS

1.2 mm 304 grade stainless steel

TREATMENT - OTHER PARTS

All other parts are coated against corrosion

DIMENSIONS (mm)

GT-7600: 280 x 1200 x 920 (WxLxH) GT-7604: 280 x 1300 x 920 (WxLxH) GT-7640: 280 x 1200 x 1065 (WxLxH) GT-7644: 280 x 1300 x 1065 (WxLxH)

ARM LENGTH (mm)

430

OPERATING VOLTAGE

115-240 V AC / 24V DC - 50-60 Hz

NOMINAL / MAX. CURRENT

250 mA / 850 mA

POWER CONSUMPTION

30 W

OPERATING TEMPERATURE

-20 oC / + 70 oC

ACCESS CONTROL

Microprocessor based control for granting access Easy integration with all kind of access control equipment

PASSAGE COUNTER

Integrated passage counter at Control Unit with 4 digits display.

CONTROL UNIT OUTPUTS

Entry/Exit/Coin Feedback Signals, 2x 12 V DC 0.3 A Power Outputs, Speaker Output

CONTROL UNIT INPUTS

Entry/Exit/Emergency Input Signals (Free Contact), RS232 Input Passage Sensors and Token/Coin Unit Inputs (accessories are optional)

CONTROL UNIT TEST BUTTONS

Entry/Exit/Emergency Operation Test and Reset Buttons integrated at Control Unit

POSITION DETECTION

Position detection with two separate micro-switches at mechanics “Only Entrance”, “Only Exit”, “Entrance and Exit”

ROTATION CONTROL

Self-centered and smooth operation by means of spring and hydraulic damper

DROP ARM FEATURE

Dropping feature at each tripod arm providing ease of site evacuation at the case of emergency, in GT-7604 and GT-7644 models

WARNING INDICATORS

Two separate warning indicators at front and rear sides of the gate. Green arrow indicates “Passage Open”, Red cross indicates “Passage Closed”

OPERATION MODE

6 different operational modes available, programmed by means of software To avoid injuries, all corners and sides are rounded

DIRECTIONAL MODE

Unidirectional and Bidirectional operation features as “Only Entrance”, “Only Exit”, “Entrance and Exit”

CAPACITY

Handling more than 30 passengers per minute

DESIGN

While aesthetic classical case design provides good outlook, its modularity ensures ease of installation and part replacement

OPERATION SAFETY

Electrical and mechanical safety for all component. To avoid injuries, all corners and sides are rounded

ELECTRICAL FAILURES

Main mechanism released and unlocked automatically. Arms rotates free

CERTIFICATION

ISO 9001:2015, CE

WARRANTY

2 Years
