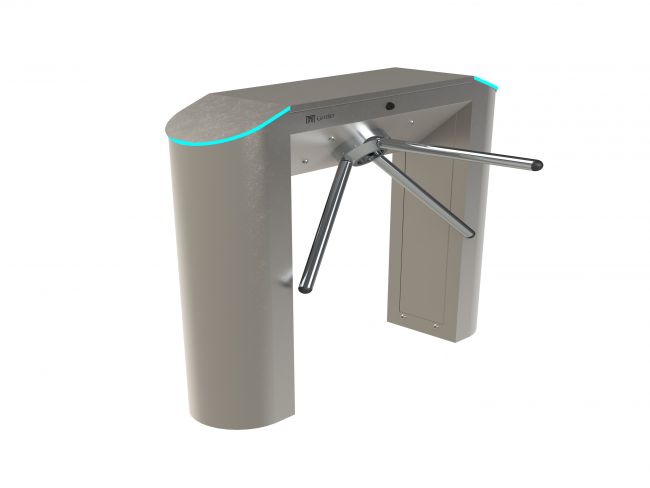

GT-6200 Flat Top Design
Overview
GateSet Corporate Line GT-6200 Series Tripod Turnstiles combine high durability and aesthetic design, presenting an ideal solution for areas requiring moderate level of security. Suitable of functioning both indoor and outdoor, GT-6200 Series Turnstiles are manufactured from 1.2 mm 304 grade stainless steel. With proven ability to handle massive crowds, the double leg case design of GT-6200 ensures robustness against high frequency access points such as subways and stadiums.
Technical Specifications
MATERIAL - MAIN BODY
:
1.2 mm 304 grade stainless steel, satin finishing
MATERIAL - ROTATING ARMS
:
1.2 mm 304 grade stainless steel
TREATMENT - OTHER PARTS
:
All other parts are coated against corrosion
DIMENSIONS (mm)
:
GT-6200: 250 x 990 x 985 (WxLxH) GT-6204: 250 x 1090 x 985 (WxLxH) GT-6240: 250 x 990 x 985 (WxLxH) GT-6244: 250 x 1090 x 985 (WxLxH)
ARM LENGTH (mm)
:
430
OPERATING VOLTAGE
:
115-240 V AC / 24V DC - 50-60 Hz
NOMINAL / MAX. CURRENT
:
250 mA / 850 mA
POWER CONSUMPTION
:
30 W
OPERATING TEMPERATURE
:
-20°C / + 70°C
ACCESS CONTROL
:
Microprocessor based control for granting access Easy integration with all kind of access control equipment
PASSAGE COUNTER
:
Integrated passage counter at Control Unit with 4 digits display.
CONTROL UNIT OUTPUTS
:
Entry/Exit/Coin Feedback Signals, 2x 12 V DC 0.3 A Power Outputs, Speaker Output
CONTROL UNIT INPUTS
:
Entry/Exit/Emergency Input Signals (Free Contact), RS232 Input Passage Sensors and Token/Coin Unit Inputs (accessories are optional)
CONTROL UNIT TEST BUTTONS
:
Entry/Exit/Emergency Operation Test and Reset Buttons integrated at Control Unit
POSITION DETECTION
:
Position detection with two separate micro-switches at mechanics
DROP ARM FEATURE
:
Dropping feature at each tripod arm providing ease of site evacuation at the case of emergency, in GT-6204 and GT-6244 models
WARNING INDICATORS
:
Two separate warning indicators at front and rear sides of the gate. Green arrow indicates “Passage Open”, Red cross indicates “Passage Closed”
OPERATION MODE
:
6 different operational modes available, programmed by means of software
DIRECTIONAL MODE
:
Unidirectional and Bidirectional operation features as “Only Entrance”, “Only Exit”, “Entrance and Exit”
ROTATION CONTROL
:
Self-centered and smooth operation by means of spring and hydraulic damper
CAPACITY
:
Handling more than 30 passengers per minute
DESIGN
:
While aesthetic classical case design provides good outlook, its modularity ensures ease of installation and part replacement
OPERATION SAFETY
:
Electrical and mechanical safety for all component. To avoid injuries, all corners and sides are rounded
ELECTRICAL FAILURES
:
Main mechanism released and unlocked automatically. Arms rotates free
CERTIFICATION
:
ISO 9001:2015, CE
WARRANTY
:
2 Years
