GL-1000- Manual

PEDESTRIAN ACCESS CONTROL » Swing Gate Turnstiles

Overview

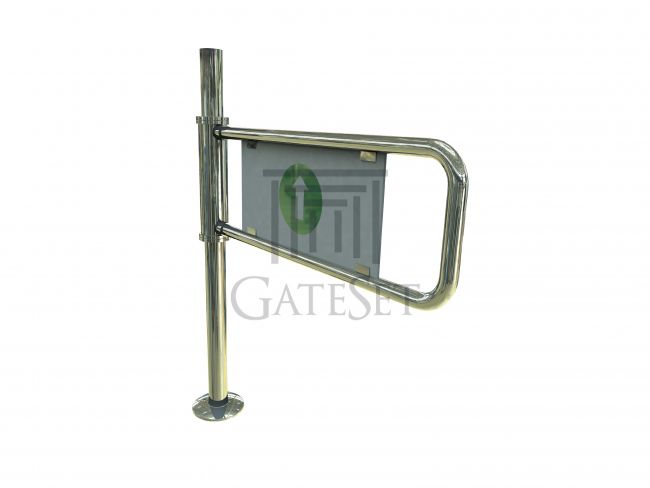

Swing Gate Turnstiles / GL-1000 Series (Manual) GateSet Eco Line GL-1000 Series Manual Leaf Swing Gate Turnstiles are an economical alternative to regulate pedestrian traffic. Thanks to its compact design, GL-1000 Series Leaf Swing Gates are an ideal solution to provide controlled passage for pedestrians and carrying goods. GL-1000 Series provides passage in one direction, and is available with manual lock with key or electromagnetic lock with access control. GL-1000 Series Swing Gates are applicable in shopping malls, supermarkets, fitness/wellness centers including tight areas with its compact, aesthetic and user friendly design.

MATERIAL - MAIN BODY

304 grade stainless steel, polished finishing

MATERIAL - SWING ARM

Steel profile frame with 32 mm diameter

TREATMENT - OTHER PARTS

All other parts are coated against corrosion

DIMENSIONS (mm)

918 x 164 x 1080 (WxLxH)

SWING ARM LENGTH (mm)

800

OPERATING VOLTAGE

GL-1000 / GL-1100: None GL-1200: 115-240 V AC / 24 V DC - 50-60 Hz

OPERATING TEMPERATURE

-20 0C / + 70 0C

ACCESS CONTROL

GL-1000: None, free passage only in one direction GL-1100: Physical lock with manual key GL-1200: Granting access with 180 KG holding force electromagnetic lock.

OPERATIONAL MODE

Easy integration with all kind of access control equipment

AUTO CLOSE

Arm will return to center position automatically

OPERATION SAFETY

Electrical and mechanical safety for all component. To avoid injuries, all corners and sides are rounded

ELECTRICAL FAILURES

In an emergency case, main mechanism released and unlocked automatically. Turnstile would be free to open to manually in order to ensure fast evacuation. (Applied for GL-1200 only)

CERTIFICATION

ISO 9001:2008

WARRANTY

2 Years
